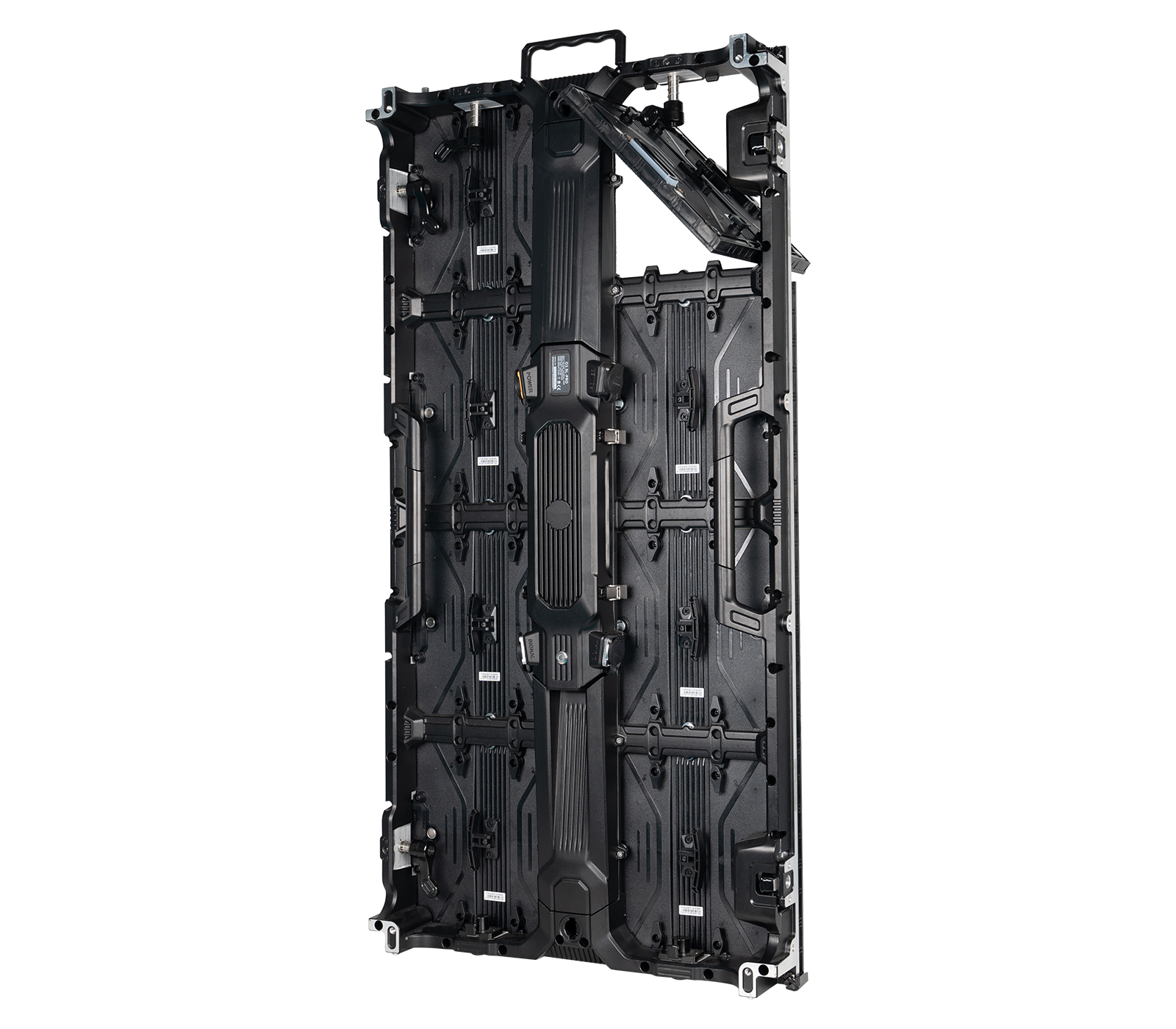

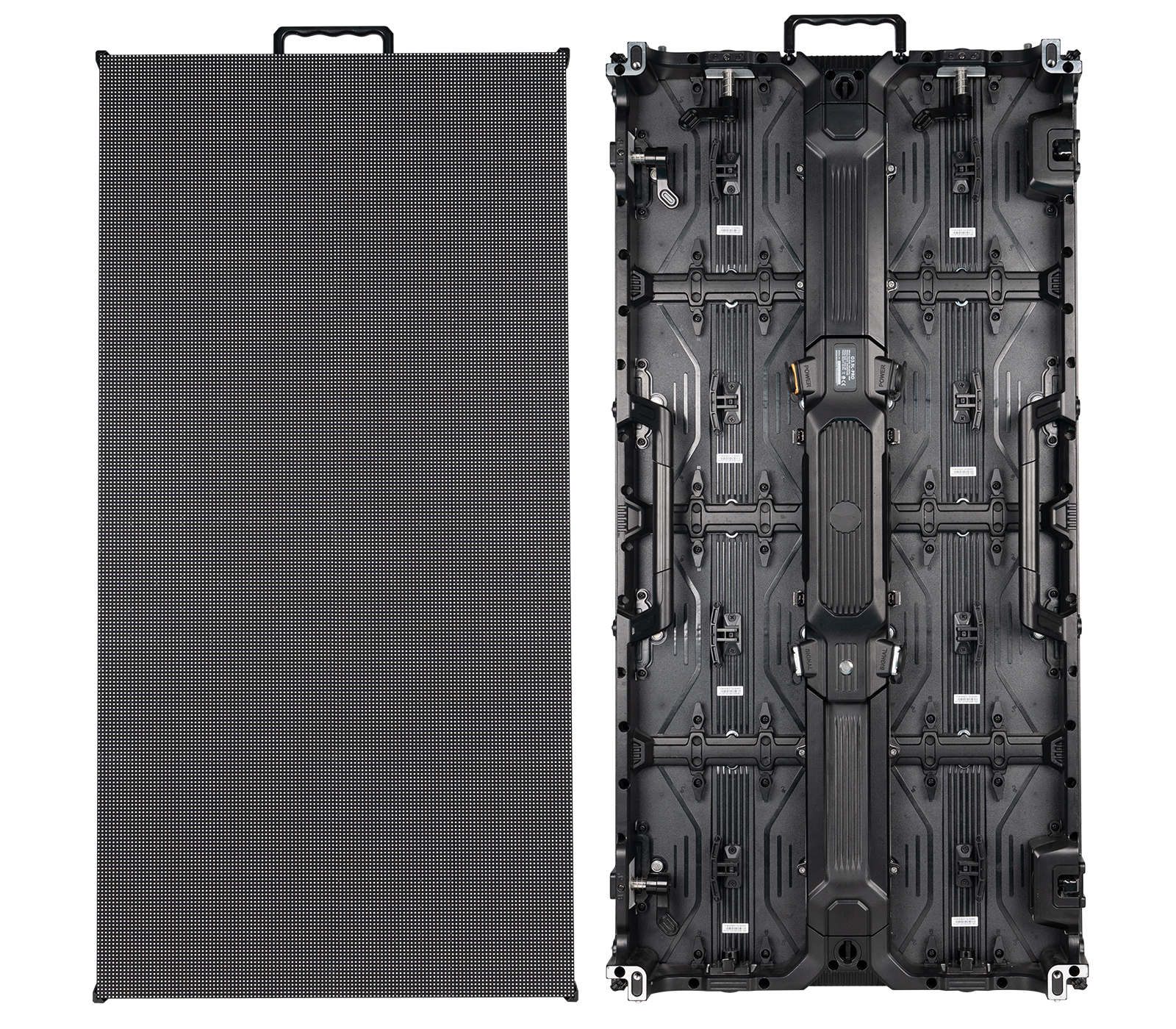

ORB Series

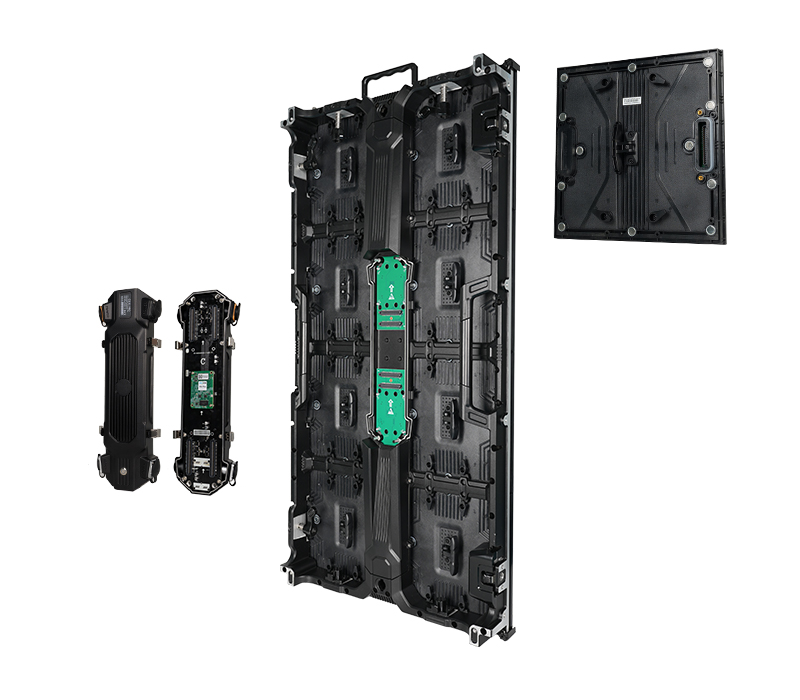

    ORB Series LED video panel is designed for outdoor rental & stage application, has pixel pitch 2.6mm, 2.9mm, 3.9mm, 4.8mm for option. Magnetic module and modular power unit design is very easy for site maintenance. It is a professional led video panel for all kinds of events application scenario.

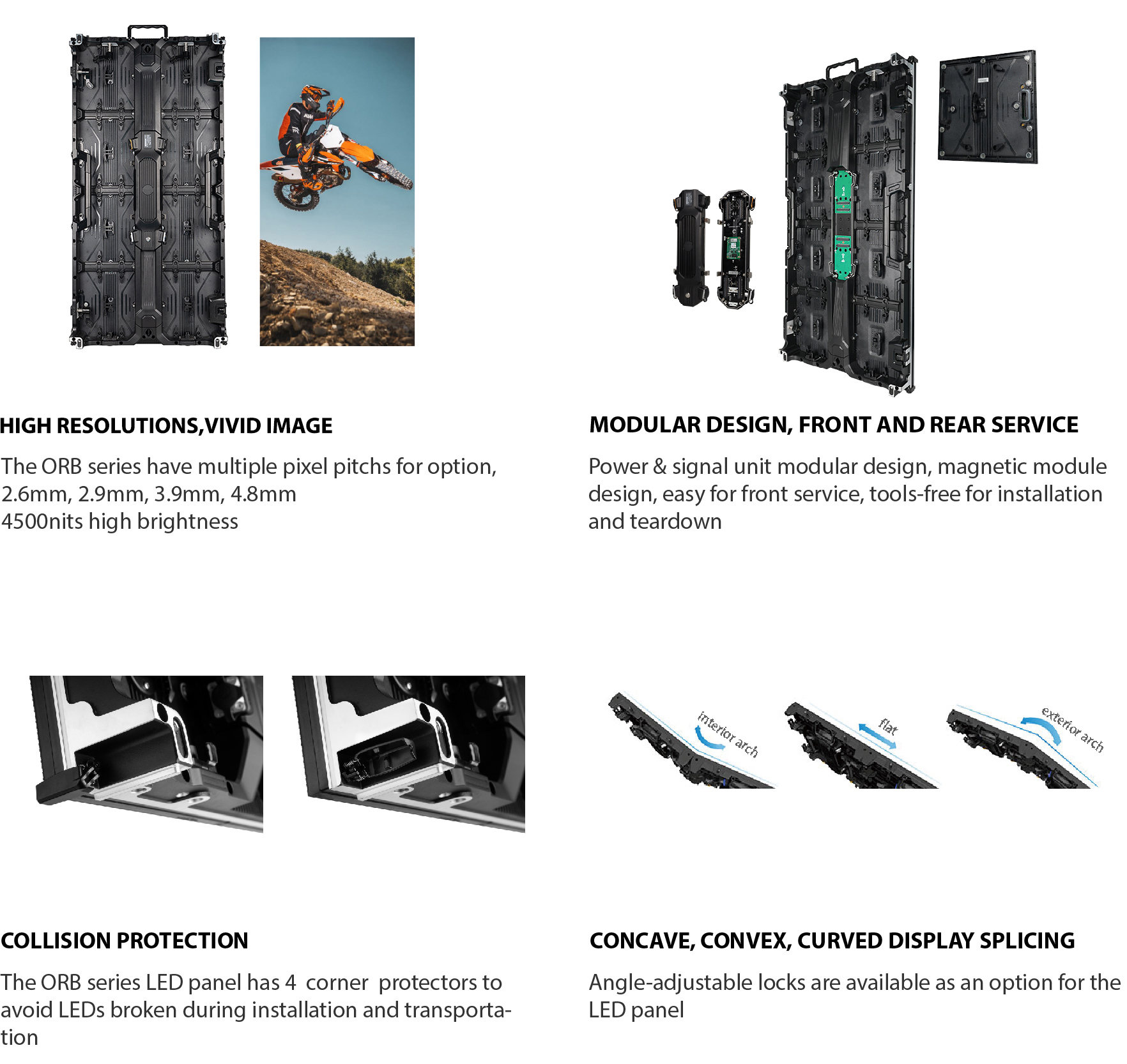

FEATURE
SPECIFICATION

ORB-2.6ORB-2.9ORB-3.9ORB-4.8
Physical Pitch2.6mm/0.1“2.97mm/0.12”3.91mm/0.15"4.8mm/0.19"
Pixel ConfigurationSMD1921SMD1921SMD1921SMD2727
Pixel Density147456px/m2112896px/m265536px/m243264px/m2
Module Dimension(WxH)250x250mm / 9.84"x9.84"
Panel Dimension(WxHxD)

500x500x80mm / 19.68"x19.68"x3.14"

500x1000x80mm / 19.68"x19.68"x3.14"

No. of Module/panel(WxH)2x2/2x4
Module Resolution96x96px84x84px64x64px52x52px
Panel Resolution

192x192px

192x384px

168x168px

168x336px

128x128px

128x256px

104x104px

104x208px

Panel MaterialDie-casting Aluminum
Panel Weight8kg/14kg (17.63lbs/30.86lbs)
Gray Scale16bit
Contrast Ratio4000:1
Avg. Power Consumption

64w/panel

128w/panel

Max. Power Consumption

192w/panel

384w/panel

Operating Temp/Humidity-10°C - 60°C / 10% - 60%
Storage Temp/Humidity-30°C - 60°C/ 10% - 60%
Refresh Rate7680hz
Brightness≥4500nits
Viewing Angle(H/V)160°/140°
Expected Lifetime100,000hrs
Max. Stacking/Hanging20/10
ServiceFront/Rear
IP Rating(Front/Rear)IP65/IP54
CertificationCCC,CE,ETL,RoHS
